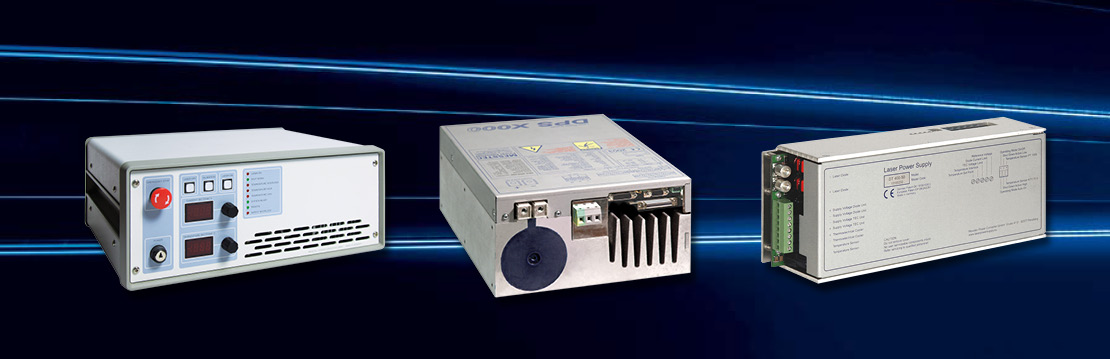

CW Driver, air- or water-cooled
The product line Dxxxx consists of two power categories. Each type is available either with air cooling or with water cooling. The maximum diode current is 80A, the maximum diode voltage is 55V.
We'll kindly support you, if you need a special configuration.
CW Driver Dxxxx
| Type | Diode-Current [A] | Diode-Voltage [V] | Total Maximum Power [W] | Cooling | Data Sheet |
|---|---|---|---|---|---|
D 1900-80-A | 80 | 24 | 1900 | Air | |
D 1900-80-W | 80 | 24 | 1900 | Water | |
D 3300-60-A | 60 | 55 | 3300 | Air | |
D 3300-60-W | 60 | 55 | 3300 | Water |
The product line DPS for CW- and modulated operation is powered by an input voltage 187V … 276V. It has an integrated power factor correction and the standard version has a RS 232 interface for configuration, control and monitoring. The power ranges from 1000W to 3000W, the diode current up to 100A and the diode voltage up to 150V.
The pulsable product line DPSP is equipped with an additional internal (PUI) or external (PUE) pulse unit and an internal pulse generator (PCG). A rise time of 1µs is achievable. CW operation up to short pulsed mode is possible.
For high-demand applications several units can be operated in parallel configuration.
The DPS/DPSP series is no longer in production and only remaining stocks are available.
This series will be replaced by the new L-series in the future.
CW Drivers DPS - discontinued
Type | Current | Voltage | Power | Other Technical Data | Data Sheet | Operating Manual |
|---|---|---|---|---|---|---|
DPS 1000-50 | 0...50 | 20 | 1000 | Ue = 187V…276V, PFC, RS 232, industry interface | ||
DPS 2000-50 | 0...50 | 40 | 2000 | Ue = 187V…276V, PFC, RS 232, industry interface | ||
DPS 3000-50 | 0...50 | 60 | 3000 | Ue = 187V…276V, PFC, RS 232, industry interface | ||
DPS 3000-70 | 0...70 | 42,8 | 3000 | Ue = 187V…276V, PFC, RS 232, industry interface |
Pulsable Drivers DPSP - discontinued
Type | Current [A] | Voltage [V] | Power [W] | Other Technical Data | Data Sheet | Operating Manual |
|---|---|---|---|---|---|---|
DPSP 1000-50 PCG PUI | 0...50 | 20 | 1000 | with pulse generator, internal pulse unit PUI, Ue = 187V…276V, PFC, RS 232, industry interface | ||
DPSP 1000-50 PCG PUE | 0...50 | 20 | 1000 | with pulse generator, external pulse unit PUE, Ue = 187V…276V, PFC, RS 232, industry interface | ||
DPSP 2000-50 PCG PUI | 0...50 | 40 | 2000 | with pulse generator, internal pulse unit PUI, Ue = 187V…276V, PFC, RS 232, industry interface | ||
DPSP 2000-50 PCG PUE | 0...50 | 40 | 2000 | with pulse generator, external pulse unit PUE, Ue = 187V…276V, PFC, RS 232, industry interface | PDF | |
DPSP 3000-50 PCG PUI | 0...50 | 60 | 3000 | with pulse generator, internal pulse unit PUI, Ue = 187V…276V, PFC, RS 232, industry interface | PDF | |
DPSP 3000-50 PCG PUE | 0...50 | 60 | 3000 | with pulse generator, external pulse unit PUE, Ue = 187V…276V, PFC, RS 232, industry interface | PDF | |
DPSP 3000-70 PCG PUI | 0...70 | 42,8 | 3000 | with pulse generator, internal pulse unit PUI, Ue = 187V…276V, PFC, RS 232, industry interface | PDF | |
DPSP 3000-70 PCG PUE | 0...70 | 42,8 | 3000 | with pulse generator, external pulse unit PUE, Ue = 187V…276V, PFC, RS 232, industry interface | PDF |
