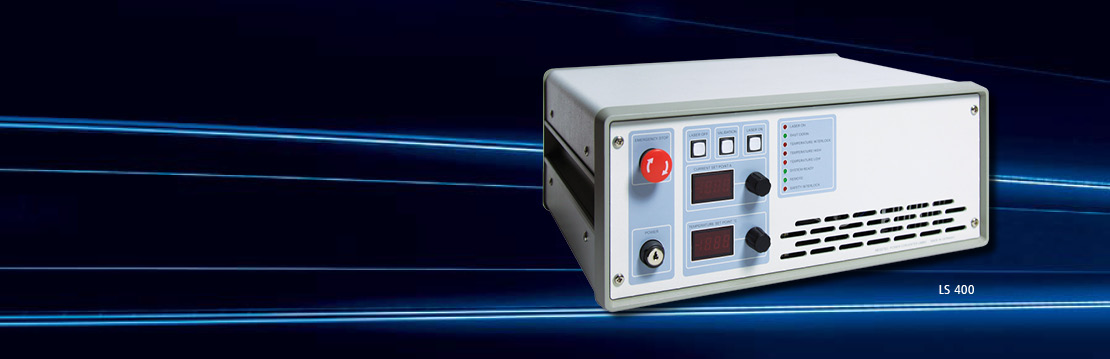

The LS 400 types are complete laser driver systems with:

  • diode driver for a maximum diode current of 60A and a maximum diode voltage of 29V
  • TEC controller for Peltier elements for voltages up to +/-29V and currents up to +/-15A
  • integrated operating panel
  • RS 232 interface
  • pilot laser
  • shutter control
  • safety interlock

CW operation (types LS 400) and pulsed operation (types LS 400 FP) up to 5kHz are possible.

The input voltage can vary between 88V and 264V and the input frequency can vary between 47Hz and 63Hz.



Turn-Key Systems CW Operation

Typ

CW
Operation

Manual Setpoint
for Diode Current

Manual Setpoint
for Temp.

Remote
Operation

Industry
Interface

RS232
Interface

Safety
Interlock

Switch
Pilot Laser

LS 400-50

√√    √√

LS 400-50

√√√   √√

LS 400-50

√√ √√√√√

LS 400-50

√√√√√√√√

LS 400-60

√√

LS 400-60

√√√

LS 400-60

√√ √√√

LS 400-60

√√√√√√

LS 400-60

√√    √√

LS 400-60

√√√   √√

LS 400-60

√√ √√√√√

LS 400-60

√√√√√√√√

Turn-Key Systems Pulsed Operation

Type

Pulsed Operation

Manual Set-point for Diode Current

Manual Set-point
for Temp.

Remote Operation

Industry Interface

RS 232 Interface

Safety Interlock

Switch Pilot Laser

LS 400-50 FP

√√    √√

LS 400-50 FP

√√√   √√

LS 400-50 FP

√√ √√√√√

LS 400-50 FP

√√√√√√√√
LS 400-60 FP√√    √√

LS 400-60 FP

√√√   √√

LS 400-60 FP

√√ √√√√√

LS 400-60 FP

√√√√√√√√
